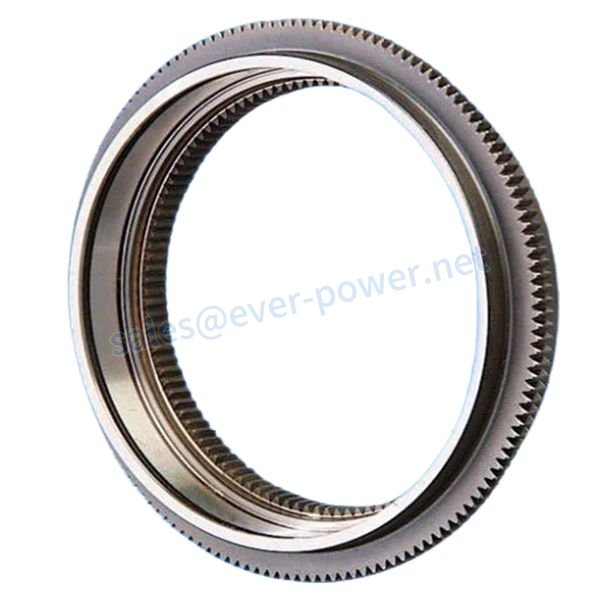

Aircraft Internal Gear: Enhancing Efficiency and Reliability in Transmission Drives

Welcome to our comprehensive guide on Aircraft Internal Gear. In this article, we will explore the various aspects of this remarkable gear type, including its description, product features, and frequently asked questions. Whether you are an aviation enthusiast or a mechanical engineer seeking reliable transmission solutions, this article will provide you with valuable insights into the world of Aircraft Internal Gear.

Description

Dimension: Φ3mm - Φ120mm

Module: M0.15

Material Type: Metal as customer required

Product Features

• Internal Gears provide a compact parallel shaft transmission drive with considerable speed reduction.
• Internal gear is a gear with its teeth cut in the internal surface of a cylinder and meshes with spur gears.
• Internal Gears have the teeth generated on the I.D. of the blank. They are generally more robust and more efficient than the mating pinion gear. The pitch diameter of the internal gear must be at least 1.5 times the P.D. of the mating pinion. If this condition is not met, interferences between the tips of the teeth will occur.
• Provided highly precision internal gear.
• Offers ODM & OEM services.

Installation, Maintenance, and Repair

Installing and maintaining Aircraft Internal Gear is crucial for optimal performance and longevity. Follow these guidelines:

• Ensure proper alignment during installation to prevent premature wear and misalignment issues.
• Regularly inspect the gear teeth for signs of damage or wear and address any issues promptly.
• Use recommended lubricants to reduce friction and maintain smooth operation.
• In case of repair, consult a professional technician with experience in aircraft transmission systems.
• When replacing the gear, ensure compatibility with the existing system and follow manufacturer guidelines.

Other Products Offered

In addition to Aircraft Internal Gear, our company specializes in supplying various Plastic Gear used in different industries. Our product range includes agricultural gearboxes, power output shafts, sprockets, fluid couplings, worm gear reducers, gears and racks, detachable chains, pulleys and pulleys, planetary gearboxes, timing pulleys, bushings, and more. We take pride in offering high-quality products at competitive prices, supported by our commitment to providing excellent customer service. Whether you require standard products or custom solutions, we welcome you to explore our diverse range of offerings.

Frequently Asked Questions

1. When can I get the quotation?

   We usually quote within 24 hours after we receive your inquiry. If you are in urgent need of pricing, please let us know, and we will prioritize your inquiry.

2. How can I get a sample to check your quality?

   After price confirmation, you can request samples to evaluate our quality. Depending on your location, we can either send them from our Chinese factory or provide you with the model directly from our European agent storage.

3. What kind of files do you accept for printing?

   We accept PDF, Core Draw, and high-resolution JPG files for printing.

4. Can you do the design for us?

   Yes, we have a professional team with extensive experience in design and manufacturing. We can assist you in developing customized solutions tailored to your specific requirements.

5. How long can I expect to get the sample?

   Typically, samples can be delivered within 3-5 working days. However, the exact timeframe may vary depending on the complexity and customization of the product.
